13-Unit Testing Object-Oriented Software

一、内容

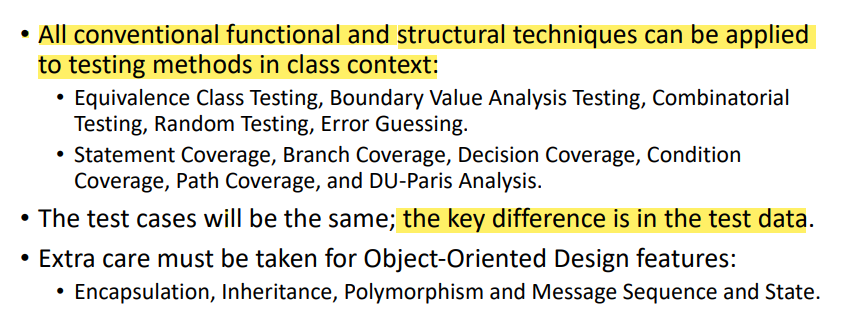

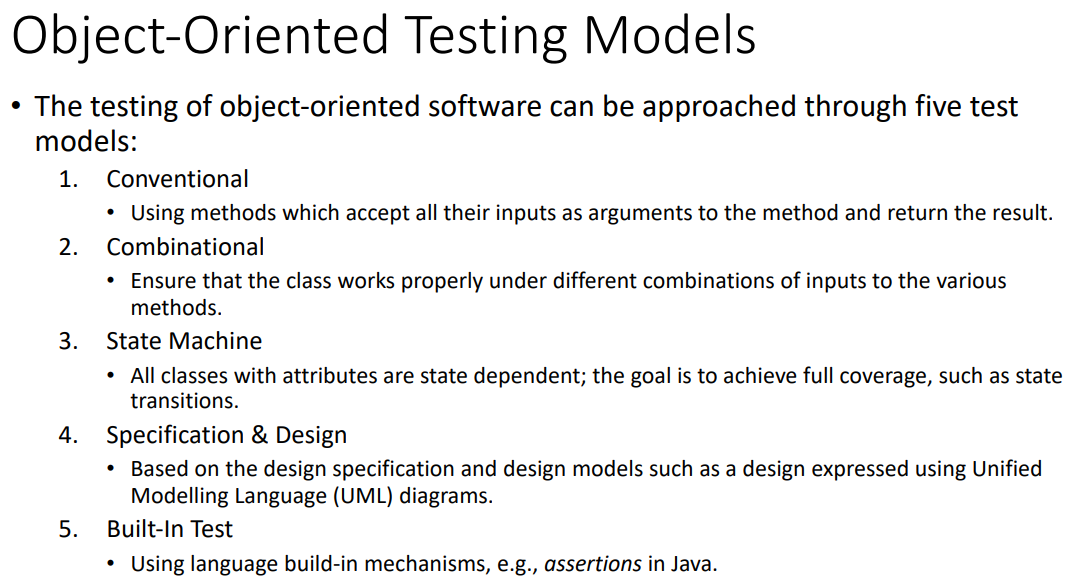

1,Object-oriented design is centered around the concepts of classes, inheritance, and messages.类、接口、方法

Classes objects preserve state; state control is typically distributed over an entire program. State control errors are likely to occur
Inheritance dynamic binding & complex inheritance structures are prone to faults.
Message object-oriented programs typically have many small components and therefore more interfaces. Interface errors are more likely to occur.


二、步骤

1,列出input,output的范围 重叠的分区,但是根据规范,它们应该被视为独立的类。 2,组合test data 3,测试

三、案例

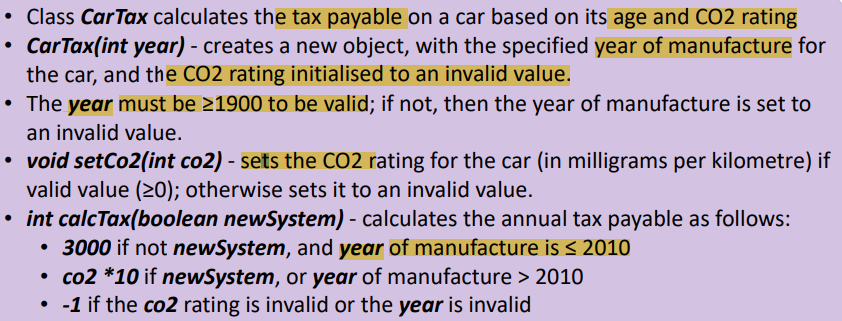

题目: image2

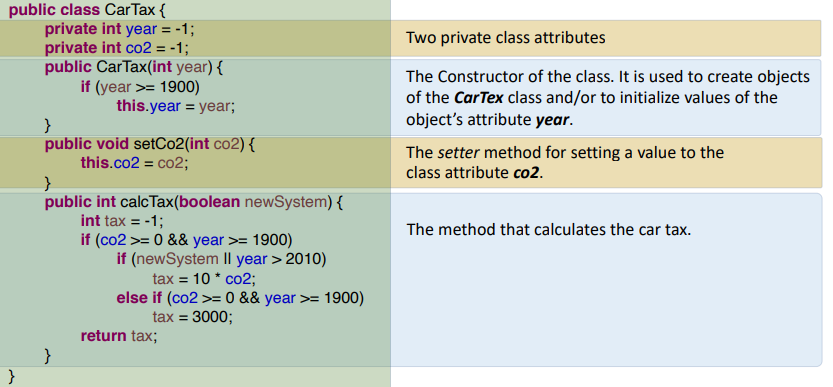

源代码 image3

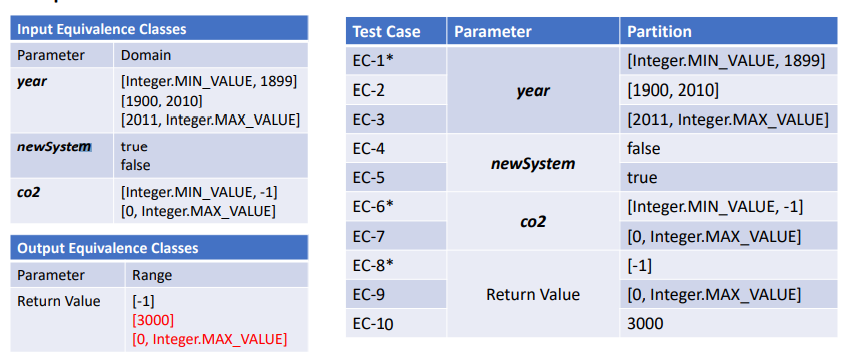

1,列出input,output的范围 重叠的分区,但是根据规范,它们应该被视为独立的类。 Overlapped partitions, but based on the specification, they should be treated as separate classes. image4

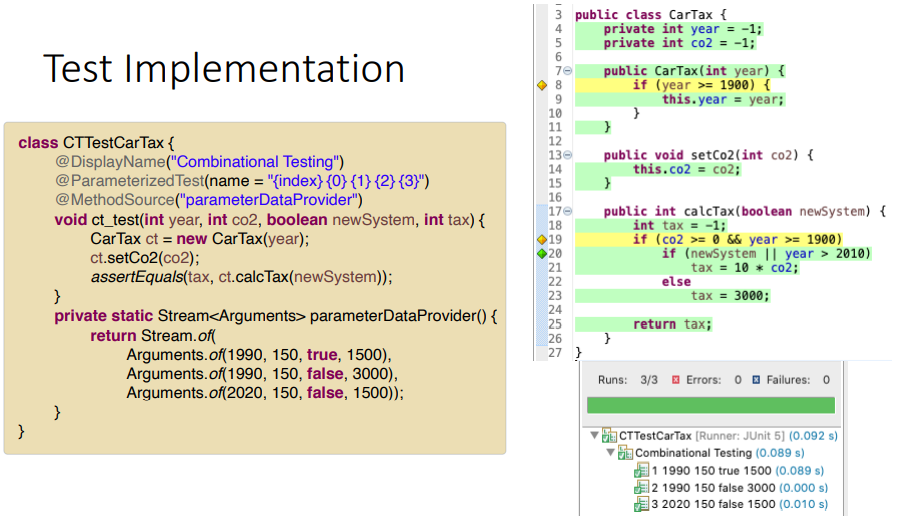

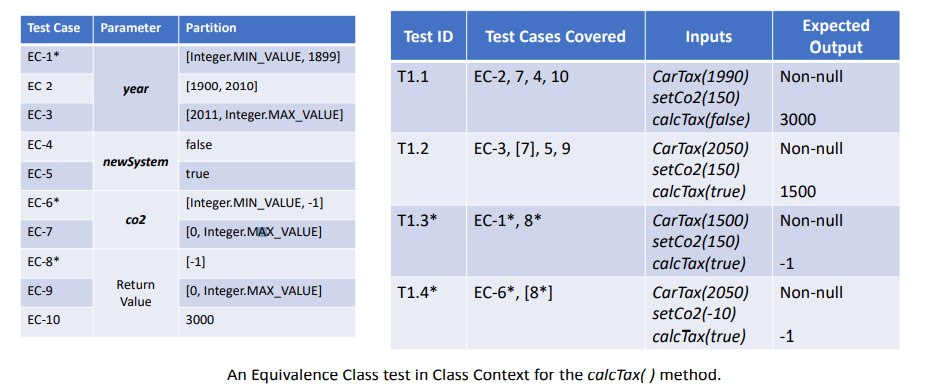

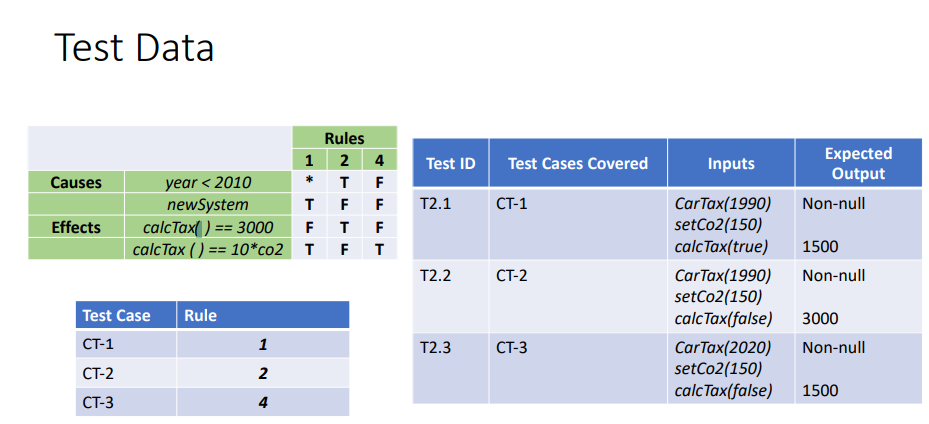

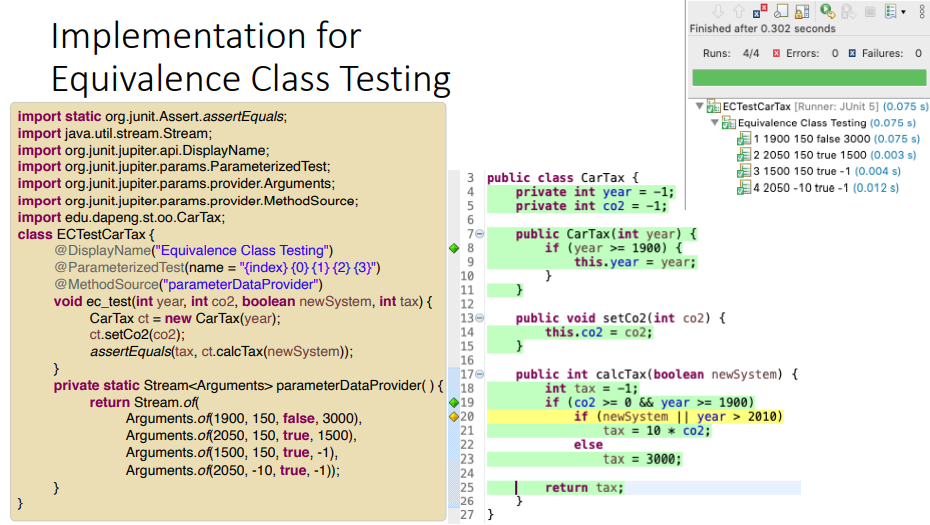

2,组合test data image5 3,测试 image6

四、Combinational Testing

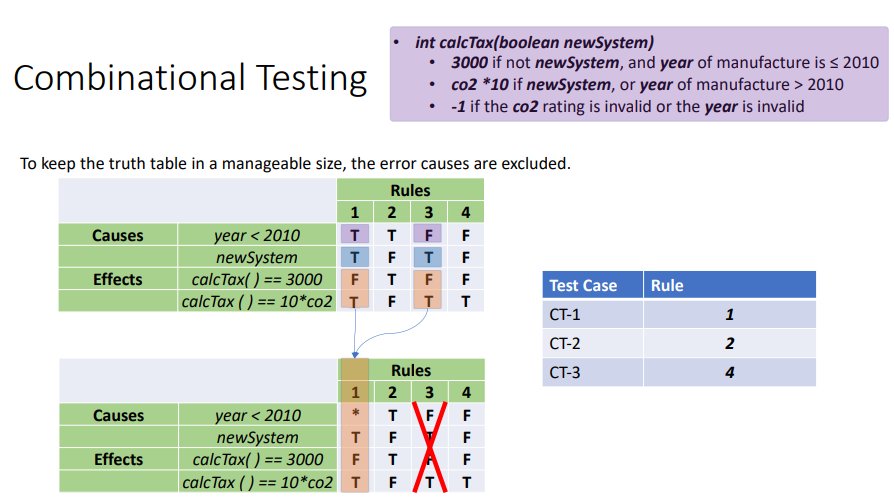

用组合测试来处理该类问题 image7



五、Summary
